How to Find Your DPF Pressure Sensor Location: Complete Guide to Diagnosis, Testing, and Replacement

The diesel particulate filter differential pressure sensor represents one of the most critical yet frequently misunderstood components in modern diesel emission control systems, serving as the “eyes” providing the engine control module with essential information about DPF loading status, regeneration necessity, and filter health. This small sensor—typically costing $50-200 to replace—enables the sophisticated monitoring and control strategies allowing DPF systems to function automatically, initiating regeneration cycles when soot accumulation reaches thresholds requiring cleaning while preventing excessive soot buildup that would damage the filter or engine.

However, DPF pressure sensors operate in one of the harshest environments in automotive applications, subjected to extreme temperature cycling (from ambient to 1,000°F+ exhaust temperatures), exposure to corrosive exhaust gases, vibration from engine operation and road conditions, and contamination from the very soot particles they’re designed to monitor. These challenging conditions cause sensor failures that can disable DPF regeneration, trigger check engine lights, cause drivability problems, and in severe cases, lead to expensive DPF damage when soot accumulation progresses beyond recoverable levels.

Locating DPF pressure sensors for inspection, testing, or replacement presents challenges for many vehicle owners and even some professional technicians, as sensor positions vary substantially across vehicle makes and models, sensors are often hidden behind other components requiring removal for access, and the small size combined with black coloring matching surrounding components makes visual identification difficult. Understanding where these sensors are typically located, how to systematically find them on unfamiliar vehicles, and what diagnostic procedures confirm sensor problems enables effective troubleshooting that prevents misdiagnosis and unnecessary component replacement.

This comprehensive guide explains DPF pressure sensor function and operation principles, provides systematic methods for locating sensors across different vehicle configurations, details common sensor failure modes and their symptoms, establishes proper diagnostic and testing procedures confirming sensor problems, explains sensor cleaning procedures that may restore function without replacement, and provides step-by-step replacement instructions enabling DIY repairs or informed professional service discussions.

Understanding DPF Pressure Sensor Function and Technology

Before attempting to locate or diagnose DPF pressure sensors, understanding what these devices do and how they operate provides essential context for effective troubleshooting and repair.

The Role of Pressure Differential Measurement

DPF pressure sensors measure the pressure difference between exhaust gases entering the DPF (upstream pressure) and exhaust gases exiting the DPF (downstream pressure). This pressure differential directly correlates with DPF restriction—as soot accumulates in the DPF substrate passages, exhaust flow restriction increases, creating larger pressure differences between inlet and outlet.

Clean DPF pressure differential at moderate engine speeds typically measures 1-3 psi on most light-duty diesel applications. As soot accumulates, differential pressure gradually increases to 4-6 psi (indicating moderate loading requiring regeneration soon), 6-8 psi (high loading requiring immediate regeneration), and potentially 10+ psi (critical loading risking DPF damage or complete engine power loss from excessive backpressure).

The engine control module continuously monitors pressure differential values, comparing measured pressures against modeled soot accumulation calculations based on engine operating conditions. When measured pressure exceeds thresholds for current operating conditions, the ECM initiates active regeneration cycles (raising exhaust temperatures to burn accumulated soot) or triggers warning lights indicating regeneration requirements.

Without functional pressure sensing, the ECM cannot accurately determine soot loading, potentially allowing excessive accumulation that damages the DPF or prevents regeneration, or triggering unnecessary regeneration cycles that waste fuel and create excessive thermal stress. Proper sensor operation is essential for DPF system health.

Differential Pressure Sensor Technology and Construction

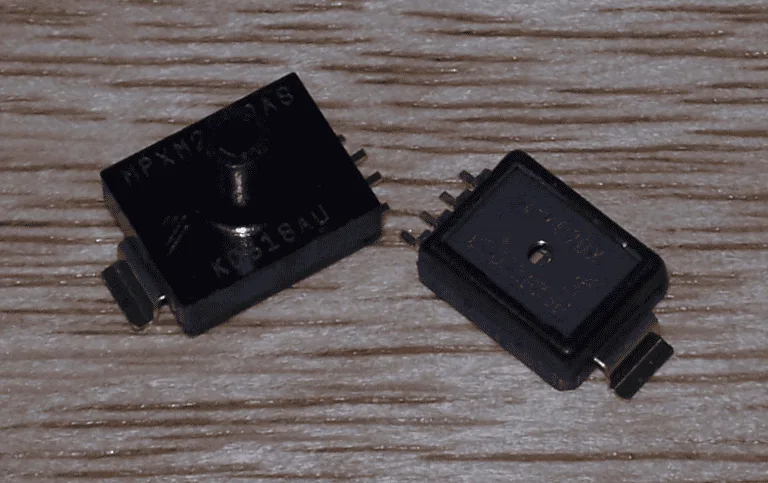

Most automotive DPF pressure sensors use silicon diaphragm technology where a thin silicon membrane separates two pressure chambers. Upstream exhaust pressure applied to one side of the diaphragm and downstream pressure applied to the other side cause the diaphragm to deflect proportionally to the pressure difference.

The deflection measurement occurs through piezoresistive sensing—strain-sensitive resistors embedded in or deposited on the silicon diaphragm change resistance as the diaphragm flexes. These resistance changes are measured by electronic circuits within the sensor, converted to voltage signals (typically 0.5-4.5 volts representing the measurable pressure range), and transmitted to the ECM through the sensor’s electrical connector.

The sensor housing typically includes two pressure ports (barbed nipples accepting silicone or rubber hoses), electrical connector (usually 3-pin providing ground, 5-volt reference, and signal return), mounting bracket or flange (attaching sensor to vehicle structure), and integrated electronics (amplifying and conditioning the sensor signal for ECM compatibility).

Sensor mounting location is typically in the engine compartment rather than directly on the exhaust system to protect electronic components from extreme exhaust temperatures. The upstream and downstream pressure ports connect to the exhaust system through flexible hoses (typically 4-6mm ID silicone or heat-resistant rubber) routed from pressure tap points on the exhaust before and after the DPF.

Alternative Sensor Technologies

While differential pressure sensing dominates automotive DPF applications due to cost-effectiveness and reliability, alternative technologies exist for specialized applications or future development.

Radio frequency (RF) sensors use microwave resonance in the DPF substrate to measure soot and ash accumulation directly rather than inferring loading from pressure differential. RF sensors provide more accurate soot measurement independent of exhaust flow variations but cost substantially more than pressure sensors and haven’t achieved widespread automotive adoption.

Resistive soot sensors position electrodes in the exhaust stream, measuring electrical resistance changes as conductive soot deposits bridge the electrodes. These sensors provide direct soot measurement but face reliability challenges from electrode fouling, high-temperature exposure, and interference from ash accumulation.

Electrochemical sensors measuring exhaust gas composition changes as soot loading increases represent another research direction, though commercial automotive applications remain limited. For the foreseeable future, differential pressure sensing will continue dominating DPF monitoring in automotive applications.

Systematic Approaches to Locating DPF Pressure Sensors

Given the variation in sensor locations across vehicle makes, models, and production years, systematic location methods work more reliably than attempting to memorize specific positions for every vehicle.

Method 1: Following Pressure Hoses from the DPF

The most reliable location method follows the pressure sensing hoses from their connection points on the exhaust system back to the sensor. This approach works universally regardless of vehicle type or sensor mounting location.

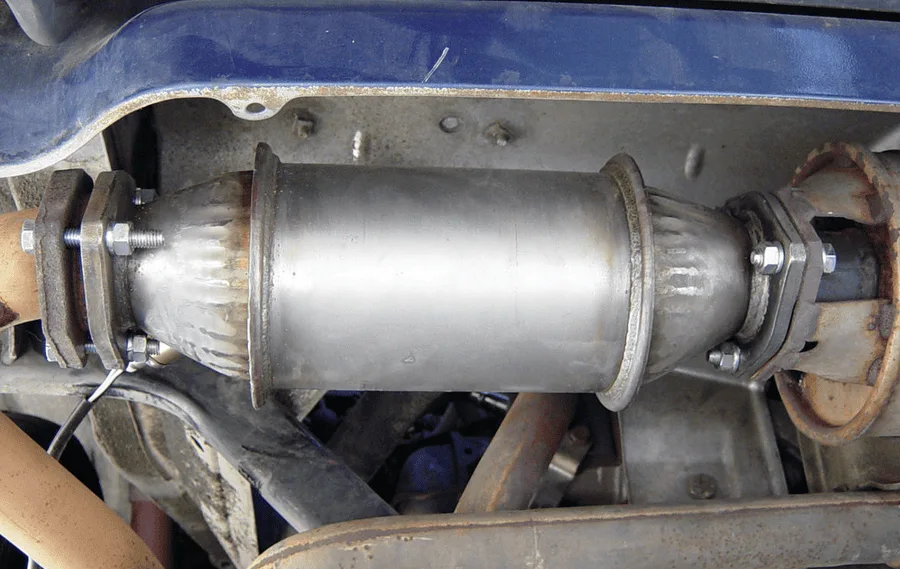

Identifying DPF location provides the starting point. On most light-duty diesel trucks (Ram, Ford, GM), the DPF is located under the vehicle behind the transmission and in front of the fuel tank—a large cylindrical canister typically 8-12 inches diameter and 12-18 inches long. On some vehicles, the DPF may be closer to the engine or integrated with SCR catalyst units.

Locating pressure tap points on the DPF housing requires visual inspection of the canister. Look for small threaded ports (typically 1/4″ or M10 threading) with hoses attached—usually one port near the inlet end (where exhaust enters) and another near the outlet end (where exhaust exits). These ports may have brass or steel fittings with hose barbs accepting the pressure sensing hoses.

Following hoses from the DPF taps leads to the sensor location. The hoses route from under the vehicle up into the engine compartment, typically following the frame rail or inner fender well. Tracing these hoses (which may be black silicone or rubber blending with surrounding components) eventually leads to the sensor body where both hoses connect to the sensor’s pressure ports.

Access challenges may require raising the vehicle on jack stands or ramps to see the hose routing from the DPF. Using a flashlight or inspection camera helps trace hoses through tight spaces or behind components. Once the general routing is understood, following from the engine compartment end may be easier than starting at the DPF.

Method 2: Searching Common Mounting Locations

While sensor positions vary, several mounting locations are common across multiple vehicle models, allowing educated searches when hose tracing proves difficult.

Passenger-side firewall area represents the most common sensor location on many vehicles. Look for sensors mounted on brackets attached to the inner fender well, firewall, or structural members in the passenger-side front corner of the engine compartment. This location keeps sensors away from engine heat while providing convenient hose routing to the DPF below.

Driver-side firewall or fender serves as an alternative mounting location on some vehicles, particularly when DPF positioning or hose routing makes passenger-side mounting impractical. Check behind or below major components (air filter housings, battery boxes, windshield washer reservoirs) that may obscure sensor visibility.

Frame rail mounting positions sensors on vertical surfaces of the frame rail where it passes through the engine compartment. Look along the inside of the frame rail on either side, particularly near where the frame transitions from engine compartment to under-vehicle areas.

Transmission tunnel or firewall mounting in some vehicles positions sensors on the firewall above the transmission, requiring removal of covers or access panels for visibility. This central location provides equidistant routing to DPF taps but makes access more difficult.

Method 3: Using Service Information or Online Resources

Factory service manuals provide the most reliable sensor location information, including detailed diagrams showing exact mounting positions, component removal sequences for access, and sensor specifications for diagnostic reference. Dealership service departments can often provide this information, or factory manuals may be available through subscription services like Mitchell1, AllData, or manufacturer-specific platforms.

Vehicle-specific forums and owner communities often include threads discussing DPF sensor locations, with photos showing exact positions and access methods for specific makes and models. Searching forums for your vehicle year, make, and model plus “DPF pressure sensor location” typically yields useful discussions from owners who have located sensors previously.

YouTube videos demonstrating DPF sensor replacement or cleaning on specific vehicle models provide visual guidance superior to text descriptions alone. Watching videos for your exact vehicle (or closely related models) shows real-world sensor locations and access procedures.

Professional technician networks including forums and social media groups where technicians discuss diagnostic challenges often include location information for problematic sensor applications. While these resources target professional audiences, they’re often accessible to determined DIY mechanics seeking information.

Visual Identification Characteristics

Once in the approximate location area, identifying the actual sensor requires recognizing characteristic features.

Physical appearance of DPF pressure sensors includes a plastic or metal housing typically 2-3 inches long and 1-1.5 inches diameter, two pressure port barbs (4-6mm diameter nipples where hoses connect), a 3-pin electrical connector (occasionally 4-pin on some applications), and mounting bracket, flange, or integral mounting tabs with bolt holes.

Color is typically black plastic or gray metal, blending with surrounding engine compartment components and making visual identification challenging without good lighting. Using a bright flashlight or inspection light dramatically improves visibility in tight engine compartment spaces.

Hose connections provide the most distinctive identification feature—two small-diameter hoses (one from each DPF pressure tap) connecting to the sensor’s pressure ports. Few other sensors in engine compartments have this characteristic dual-hose connection, making it a reliable identification point.

Common Access Obstacles and Solutions

Component removal may be necessary for sensor access on some vehicles. Common obstacles include air filter housings (requiring removal of mounting bolts and intake ducting), battery or battery boxes (disconnecting negative terminal, removing hold-down hardware), windshield washer reservoirs (draining fluid, removing mounting bolts), and plastic engine covers or underhood panels (removing snap fasteners or bolts).

Working from below provides better access on some vehicles, requiring safely raising and supporting the vehicle on jack stands, removing underbody panels or splash shields, and using inspection lights to see sensor mounting areas from below. This approach works particularly well when sensors mount low on firewalls or high on frame rails where overhead reach is difficult.

Common DPF Pressure Sensor Failure Modes and Symptoms

Understanding how DPF pressure sensors fail and what symptoms result from failures enables accurate diagnosis and prevents misattribution of sensor problems to other causes.

Electrical Failures

Open circuits occur when internal sensor wiring breaks, solder joints fail, or connector terminals corrode, preventing signal transmission to the ECM. Open circuits typically cause the ECM to set diagnostic trouble codes including P2452 (DPF pressure sensor circuit malfunction), P2454 (DPF pressure sensor circuit voltage low), or manufacturer-specific codes indicating sensor circuit problems.

Short circuits between sensor wiring and ground or between signal and reference voltage wires cause abnormal voltage readings triggering codes including P2455 (DPF pressure sensor circuit high voltage) or similar fault codes. Short circuits may result from damaged wire insulation, moisture intrusion into connectors, or internal sensor failures.

Intermittent connections from corroded terminals, loose connector pins, or damaged wiring create sporadic signal losses causing intermittent check engine lights, erratic regeneration behavior, and diagnostic trouble codes that may set and clear unpredictably. Intermittent problems prove particularly frustrating to diagnose as they may not be present during testing.

Symptoms of electrical failures include immediate check engine light illumination when failures occur, hard codes in ECM memory (stored codes requiring scanner to clear), regeneration system disabled or operating improperly, and potential engine derate (power reduction) on some vehicles when critical emission system sensors fail.

Mechanical Failures

Diaphragm damage from excessive pressure, thermal stress, or age-related material degradation causes sensors to provide inaccurate readings or fail to respond to pressure changes. Damaged diaphragms may stick (reading constant pressure regardless of actual conditions) or leak (equalizing upstream and downstream pressures eliminating differential measurement).

Housing cracks or leaks allow pressure equalization preventing differential measurement. Cracks may result from impact damage, thermal stress, or manufacturing defects. Leak symptoms often include inaccurate low pressure readings (as leaks equalize pressures reducing apparent differential) rather than complete sensor failure.

Port blockage from soot, ash, or debris accumulation in pressure sensing ports or hoses prevents pressure transmission to the sensor diaphragm. Blockages cause inaccurate readings typically showing lower-than-actual pressure differentials (as restricted ports reduce transmitted pressure). Complete blockages may cause readings suggesting empty DPF even when heavily loaded.

Symptoms of mechanical failures include gradually degrading accuracy rather than sudden failure, regeneration cycles occurring too frequently or not frequently enough, pressure readings that don’t correlate with DPF visual condition or mileage, and potential lack of diagnostic trouble codes (as electrically the sensor appears functional despite mechanical problems).

Contamination-Related Problems

Soot contamination in sensing hoses or ports represents the most common DPF sensor problem, gradually restricting pressure signal transmission and causing inaccurate readings. Contamination develops over time as microscopic soot particles deposit in hoses and ports, eventually creating significant restriction or complete blockage.

Oil or moisture in sensing hoses can also affect sensor accuracy. Oil may enter from turbocharger seal leaks or crankcase ventilation issues, while moisture accumulates from condensation during temperature cycling. Both contaminants can interfere with pressure transmission or damage sensor internals if they reach the diaphragm.

Ash accumulation from engine oil additives (incombustible metallic compounds) gradually builds in DPF systems, eventually affecting pressure sensor operation. Unlike soot (which burns during regeneration), ash is permanent until physically removed, making ash-related contamination progressive and ultimately requiring sensor cleaning or replacement.

Symptoms of contamination include gradually developing inaccuracy over months or years of operation, readings showing lower pressure differential than actual conditions, delayed or absent regeneration initiation, and often the absence of diagnostic trouble codes until contamination becomes severe enough to trigger circuit voltage faults.

Age-Related Degradation

Sensor components including diaphragms, electronic circuits, and connector terminals degrade over time from thermal cycling, vibration, and chemical exposure typical of engine compartment environments. Most DPF pressure sensors demonstrate service lives exceeding 150,000 miles when properly maintained, but premature failures occur from harsh operating conditions or manufacturing variability.

Progressive accuracy drift causes sensors to slowly lose calibration, reading slightly high or low compared to actual pressure differential. Drift may not trigger diagnostic codes but affects regeneration control, potentially causing too-frequent regeneration (wasting fuel and creating thermal stress) or insufficient regeneration (allowing excessive soot accumulation).

Symptoms of age-related degradation include subtle performance changes rather than dramatic failures, regeneration frequency changes developing gradually over months, and diagnostic trouble codes appearing only when degradation progresses to electrical circuit problems. Sensors on high-mileage vehicles (200,000+ miles) warrant replacement even without obvious failure given their critical role and modest cost.

Diagnostic Trouble Codes Related to DPF Pressure Sensors

Understanding diagnostic codes helps diagnosis by indicating whether problems relate to sensor electrical circuits, DPF system mechanical issues, or regeneration control problems.

Direct Pressure Sensor Codes

P2452 – DPF Pressure Sensor Circuit indicates the ECM has detected electrical problems in the sensor circuit including open circuits, short circuits, or signal voltages outside expected ranges. This code directly implicates sensor or wiring problems requiring electrical testing to pinpoint failures.

P2454 – DPF Pressure Sensor Circuit Low Voltage indicates sensor signal voltage is below the expected minimum (typically below 0.2-0.5 volts), suggesting open circuits in signal wire, sensor internal failure, or short to ground. Testing requires voltage measurements at sensor connector and ECM to locate the fault.

P2455 – DPF Pressure Sensor Circuit High Voltage indicates signal voltage exceeds expected maximum (typically above 4.5-4.8 volts), suggesting short circuit to reference voltage, sensor internal failure, or wiring problems. Like low voltage codes, testing requires systematic voltage measurements identifying the fault location.

DPF System Performance Codes

P244A – DPF Differential Pressure Too Low indicates the sensor is reading lower pressure differential than expected for operating conditions, suggesting sensor calibration problems, sensing hose blockage, or actual DPF problems (damaged substrate allowing bypass).

P244B – DPF Differential Pressure Too High indicates higher-than-expected pressure readings, suggesting sensor problems, sensing hose contamination affecting accuracy, or genuine DPF clogging requiring regeneration or service.

P246C – DPF High Pressure at Inlet indicates excessive exhaust backpressure from DPF restriction, often accompanying other codes. While not directly a sensor code, it confirms that high-pressure readings are genuine rather than sensor errors.

P2463 – DPF Restriction provides a general code indicating the DPF system has detected restriction problems, which may result from actual DPF clogging or sensor problems causing false restriction indications.

Regeneration-Related Codes

P1471 – DPF Regeneration Not Completed indicates regeneration attempts failed to adequately reduce soot loading, which may result from sensor problems preventing proper regeneration control, mechanical DPF problems, or engine issues preventing adequate temperature generation.

P2003 – DPF Particulate Mass Too High indicates soot loading has exceeded safe thresholds, requiring immediate regeneration or service. Sensor problems allowing excessive accumulation before detection may contribute to this code.

P242F – DPF Regeneration Not Active indicates the system has failed to initiate expected regeneration, potentially from sensor problems preventing accurate soot monitoring or mechanical issues preventing regeneration.

P2458 – DPF Regeneration Duration Excessive indicates regeneration cycles are taking longer than expected to reduce soot levels, suggesting sensor contamination preventing accurate pressure measurement, actual DPF problems requiring service, or engine issues affecting regeneration effectiveness.

P2459 – DPF Regeneration Frequency Excessive indicates regenerations occur more frequently than normal, which may result from sensor contamination causing false high-pressure readings, actual DPF problems, or engine issues causing excessive soot production.

Comprehensive DPF Pressure Sensor Testing Procedures

Proper testing confirms whether sensors have failed or if problems lie elsewhere in the DPF system, preventing unnecessary sensor replacement and ensuring correct diagnosis.

Visual and Physical Inspection

Before electrical testing, visual inspection often reveals obvious problems requiring no complex diagnostics.

Connector examination checks for corrosion (green or white deposits on terminals indicating moisture intrusion), damage (cracked housings, bent pins, or loose retention), and proper seating (connector fully inserted and locked). Connector problems cause many sensor faults resolved through cleaning or replacement without sensor changes.

Wiring inspection traces sensor wiring back toward the ECM checking for damage including chafed insulation from rubbing against sharp edges, melted insulation from heat exposure, broken wires (often visible where wiring flexes during engine movement), and connection integrity at any splices or connectors in the circuit.

Hose inspection examines both sensing hoses for damage including cracks, holes, or deformities indicating heat damage, disconnection or loose fit at sensor ports or DPF taps, and blockages visible through hose walls (dark soot accumulation may be visible in translucent hoses). Damaged or blocked hoses require replacement or cleaning even if the sensor tests functional.

Physical sensor condition checks for cracks in sensor housing, damage to pressure ports (broken barbs preventing secure hose attachment), and mounting security (loose sensors may vibrate causing intermittent connections or accelerated failure).

Electrical Testing with Multimeter

Voltage supply testing confirms the sensor receives proper power and ground from the ECM, essential for sensor operation.

Testing procedure:

1. Turn ignition on without starting engine (powering ECM and sensors)
2. Backprobe sensor connector accessing terminals without disconnecting (allows testing with sensor connected)
3. Identify reference voltage terminal (typically delivering 5 volts from ECM)
4. Measure voltage between reference terminal and ground using multimeter set to DC voltage
5. Verify voltage reads 4.5-5.0 volts (confirming ECM supplies proper reference)
6. Identify ground terminal and verify it shows 0-0.2 volts to battery negative (confirming ground circuit integrity)

Signal voltage testing measures sensor output at various conditions confirming proper operation.

At-rest testing procedure:

1. With engine off but ignition on, measure signal terminal voltage
2. Normal reading: 0.5-1.0 volts (indicating minimal pressure differential with engine not running)
3. Values outside this range suggest sensor problems or circuit faults

Running engine testing procedure:

1. Start engine and allow to idle
2. Monitor signal voltage (should increase to 1.0-2.0 volts typically at idle)
3. Increase engine speed to 2,000-2,500 RPM
4. Observe voltage increase (should rise to 2.0-3.5 volts depending on DPF soot loading)
5. Return to idle and verify voltage decreases
6. Lack of voltage change with RPM suggests sensor or hose blockage problems

Pressure Testing with Gauges

Direct pressure measurement provides definitive confirmation of actual DPF restriction independent of sensor readings, allowing comparison between actual pressure and sensor voltage to verify sensor accuracy.

Testing equipment includes low-pressure gauges (0-15 psi range provides adequate resolution for DPF applications), hose adapters (allowing gauge connection to DPF pressure taps or sensing hoses), and exhaust backpressure measurement kits (available $40-100 from tool suppliers).

Testing procedure:

1. Disconnect sensor hoses from DPF pressure taps
2. Connect pressure gauge to upstream tap (before DPF)
3. Start engine and run at 2,000 RPM
4. Record upstream pressure (typically 2-8 psi depending on engine and exhaust design)
5. Move gauge to downstream tap (after DPF)
6. Record downstream pressure (typically 1-6 psi)
7. Calculate differential (upstream minus downstream)
8. Compare measured differential to sensor voltage reading

Interpreting results:

• Clean DPF: 1-3 psi differential
• Moderate loading: 3-6 psi differential
• Heavy loading: 6-10 psi differential
• Critical loading: 10+ psi differential

Sensor voltage should correlate with measured pressure (higher pressures producing higher voltages in roughly linear relationship). Sensor voltage failing to correlate with measured pressure confirms sensor inaccuracy requiring replacement.

Comparing Scan Tool Data with Manual Measurements

Professional scan tools displaying live sensor data allow real-time comparison between ECM-interpreted sensor readings and manual measurements, providing insight into whether problems lie with sensor, wiring, or ECM interpretation.

Procedure:

1. Connect scan tool and navigate to DPF system data
2. Observe displayed pressure differential or soot loading estimates
3. Perform manual pressure testing as described above
4. Compare scan tool values with gauge measurements
5. Significant discrepancies confirm sensor or circuit problems

DPF Pressure Sensor Cleaning Procedures

When sensors fail from contamination rather than electrical or mechanical defects, cleaning may restore function without replacement, saving $50-200 typical sensor costs.

When Cleaning is Appropriate

Cleaning makes sense when visual inspection reveals soot contamination in hoses or sensor ports, electrical testing confirms proper sensor function (correct voltage supply and signal response), physical testing shows hose blockage or restriction, and diagnostic codes suggest pressure sensing problems rather than electrical faults.

Cleaning is unlikely to help when diagnostic codes indicate electrical circuit faults, voltage testing shows sensor electrical failure, physical inspection reveals housing damage, or age and mileage suggest sensor has reached end of service life.

Sensor Removal for Cleaning

Safe removal requires careful procedure preventing damage to sensor or vehicle.

Removal steps:

1. Disconnect battery negative terminal (preventing short circuits during work)
2. Photograph sensor and hose connections (documenting correct reassembly)
3. Disconnect electrical connector (pressing release tab and pulling straight)
4. Use pliers to release hose clamps at sensor ports
5. Remove hoses from sensor (twisting while pulling if stuck from age)
6. Remove sensor mounting bolts (typically 10mm or Torx T30)
7. Remove sensor from mounting bracket

Cleaning Methods

Solvent cleaning dissolves soot and carbon deposits using appropriate cleaners.

Procedure:

1. Submerge sensor ports in carburetor cleaner or brake cleaner
2. Allow soaking for 15-30 minutes
3. Use compressed air blowing through ports (removing loosened contamination)
4. Repeat soaking and blowing until ports are clear
5. Allow complete drying before reinstallation

Hose cleaning addresses contamination in sensing hoses, often more problematic than sensor contamination itself.

Procedure:

1. Remove hoses from sensor and DPF taps
2. Flush hoses with carburetor cleaner or brake cleaner
3. Use compressed air blowing through hoses (clearing loosened soot)
4. Visually inspect hoses for remaining contamination (holding up to light source)
5. Replace hoses if cleaning doesn’t restore full clarity (contaminated hoses are inexpensive and available from suppliers like Gates or Continental)

Ultrasonic cleaning for heavily contaminated sensors uses ultrasonic baths with appropriate cleaning solution (carburetor cleaner, specialized electronics cleaner) providing superior contamination removal through cavitation effects. Ultrasonic cleaning requires specialized equipment (ultrasonic cleaner tanks) but provides the most thorough cleaning for severely contaminated sensors.

Reinstallation After Cleaning

Proper reinstallation ensures cleaned sensors function reliably.

Procedure:

1. Install cleaned sensor in mounting bracket (torquing bolts to specification, typically 8-10 ft-lbs)
2. Install hoses on sensor ports (ensuring complete seating on barbed fittings)
3. Install hose clamps (preventing hose detachment from vibration or pressure pulses)
4. Route hoses avoiding heat sources and moving components
5. Connect electrical connector (ensuring full seating with audible click)
6. Reconnect battery negative terminal
7. Clear diagnostic codes using scan tool
8. Test drive vehicle observing regeneration behavior and monitoring for code return

Step-by-Step DPF Pressure Sensor Replacement

When cleaning fails or electrical testing confirms sensor electrical failure, replacement becomes necessary.

Selecting Replacement Sensors

OEM sensors from vehicle manufacturers provide guaranteed compatibility and quality, typically costing $150-300 depending on vehicle application. OEM sensors ensure proper calibration, correct electrical specifications, and proper physical fitment.

Quality aftermarket sensors from reputable manufacturers (Standard Motor Products, Dorman, Wells) cost less ($50-150 typically) while providing acceptable quality for most applications. Avoid generic sensors from unknown manufacturers as calibration and durability may be questionable.

Sensor specifications to verify include correct electrical connector configuration, proper pressure port sizes and orientation, equivalent or better operating temperature range, and pressure measurement range appropriate for application.

Replacement Procedure

Tools and materials needed include socket set or wrenches (typically 10mm for mounting bolts), pliers (for hose clamp removal), torque wrench (for proper reinstallation), replacement sensor, new hoses if existing hoses are damaged, and dielectric grease (for connector protection).

Detailed procedure:

1. Preparation:
   • Disconnect battery negative terminal
   • Document sensor position with photos
   • Clear work area of obstacles
   • Have replacement sensor and tools ready
2. Removal:
   • Disconnect electrical connector (depress locking tab, pull straight)
   • Label or photograph hose positions (upstream versus downstream)
   • Release hose clamps using pliers
   • Remove hoses from sensor ports (twisting to break soot seal if stuck)
   • Remove sensor mounting bolts (typically 2-3 bolts of 8-10mm)
   • Remove sensor from mounting bracket
3. Comparison:
   • Compare old and new sensors confirming match
   • Verify connector pin configuration identical
   • Verify pressure port positions match
   • Check mounting hole alignment
4. Installation:
   • Position new sensor in mounting bracket
   • Start all mounting bolts finger-tight
   • Torque bolts evenly to specification (typically 8-10 ft-lbs)
   • Install hoses in correct positions (upstream and downstream as documented)
   • Seat hoses fully on port barbs
   • Install hose clamps and tighten securely
   • Apply dielectric grease to electrical connector pins
   • Connect electrical connector (ensure full seating with audible click)
5. Final checks:
   • Verify hoses properly routed without kinks or sharp bends
   • Verify hoses avoid contact with hot exhaust components
   • Verify electrical connector fully engaged
   • Reconnect battery negative terminal
6. Verification:
   • Start engine and verify no unusual sounds or leaks
   • Use scan tool to clear diagnostic codes
   • Monitor scan tool data confirming sensor provides readings
   • Test drive observing normal operation
   • Monitor for code return over several days

Post-Replacement Monitoring

After replacement, monitoring system operation confirms successful repair and identifies any remaining problems.

Monitoring should include:

• Checking for code return within first 100 miles
• Observing regeneration behavior (frequency and completion)
• Monitoring fuel economy (should normalize after proper sensor function restores correct regeneration)
• Watching for performance issues (power loss, excessive smoke)

If problems persist after replacement, additional diagnosis is necessary addressing DPF mechanical issues, engine problems causing excessive soot production, or other emission system components affecting DPF operation.

Preventative Maintenance to Extend Sensor Life

Proper DPF system maintenance significantly extends pressure sensor service life by reducing contamination and operating stress.

Oil Specification Compliance

Using correct low-ash oil (typically API CJ-4 or CK-4 for current diesel applications) minimizes ash generation reducing contamination in DPF, sensing hoses, and sensor ports. Ash from improper oil accumulates permanently (not removed by regeneration), gradually blocking sensing passages.

Fuel Quality

Ultra-low-sulfur diesel (ULSD with under 15 ppm sulfur) is mandatory for DPF-equipped vehicles, minimizing sulfate formation that contributes to ash accumulation and system contamination. Using non-compliant fuel accelerates ash accumulation affecting sensor operation.

Regular Regeneration

Allowing regeneration cycles to complete rather than interrupting them through shutting off the engine prevents incomplete soot burning that accelerates accumulation. Completing regenerations maintains DPF efficiency and reduces sensor contamination.

Periodic Inspection

Annual sensor hose inspection checking for cracks, damage, or visible contamination enables early intervention before problems cause sensor failures or codes. Replacing damaged hoses ($10-20 typically) prevents sensor damage and system problems.

Additional Resources for DPF System Diagnosis

For comprehensive technical information about diesel emission control systems and diagnostic procedures, the Society of Automotive Engineers (SAE) International maintains technical papers addressing DPF systems, sensor technologies, and diagnostic best practices.

Understanding vehicle-specific diagnostic procedures and specifications, factory service manuals provide the most reliable information. Many are available through subscription services like Mitchell1, AllData, or manufacturer-specific platforms offering professional-level technical documentation.

Conclusion: Effective DPF Pressure Sensor Diagnosis and Service

Locating DPF pressure sensors—whether through systematic hose tracing from the DPF, searching common mounting locations, or using service information resources—represents the essential first step in addressing the sensor failures that disable DPF regeneration control and cause expensive system problems. The small sensors controlling sophisticated emission systems deserve the diagnostic attention and proper service enabling modern diesel vehicles to achieve their designed emission reductions while maintaining performance and reliability.

Understanding sensor technology and operation, recognizing common failure modes and their symptoms, performing proper electrical and mechanical testing, and distinguishing between sensors requiring cleaning versus replacement prevents the misdiagnosis that causes unnecessary parts replacement or leaves problems unresolved. The systematic diagnostic approaches outlined here enable accurate problem identification whether performing DIY service or communicating effectively with professional technicians.

For the relatively modest costs involved—$50-200 for sensor replacement, minimal costs for cleaning, and reasonable labor times for competent DIY mechanics—proper DPF pressure sensor service provides excellent value through preventing the DPF damage, engine problems, and expensive repairs that result from unaddressed sensor failures allowing excessive soot accumulation or improper regeneration control.

By understanding where sensors are located, how to test them effectively, when cleaning suffices versus replacement necessity, and how proper maintenance prevents premature failure, diesel vehicle owners can maintain DPF system health throughout vehicle service lives while avoiding the frustration and expense that sensor problems create when ignored or improperly addressed.
