VCT Solenoid Stuck Open: Complete Diagnosis, Repair, and Prevention Guide

Few engine problems cause as much confusion and concern as a stuck VCT solenoid. This small but critical component plays an essential role in modern engine performance, fuel efficiency, and emissions control. When it fails—particularly when it becomes stuck in the open position—the consequences can range from minor performance issues to significant engine damage if left unaddressed.

A VCT solenoid stuck open allows continuous oil flow to the camshaft phaser, preventing proper valve timing adjustment and potentially causing rough idle, decreased fuel economy, engine noise, and check engine light illumination. The good news is that this problem is both diagnosable and repairable, often without requiring major engine work.

This comprehensive guide covers everything you need to know about VCT solenoid problems, from understanding how the system works to diagnosing symptoms, performing repairs, and preventing future issues. Whether you drive a Ford F-150 with the 5.4L Triton V8, a General Motors vehicle with Variable Valve Timing, or any other modern engine with electronic valve timing control, this information will help you address VCT solenoid issues effectively.

Understanding Variable Camshaft Timing Technology

Before diving into troubleshooting and repair, it helps to understand what variable camshaft timing does and why it matters. This knowledge makes diagnosing problems easier and helps you appreciate why maintaining this system is so important.

What Is Variable Camshaft Timing?

Variable Camshaft Timing (VCT) is an automotive technology that allows the engine’s computer to adjust when the intake and exhaust valves open and close relative to the crankshaft position. Traditional engines have fixed valve timing determined by the physical relationship between the camshaft and crankshaft, established when the timing chain or belt is installed.

Fixed valve timing represents a compromise. Engine designers must choose timing that works reasonably well across all operating conditions—idle, cruising, acceleration, and high-load situations. However, optimal valve timing differs significantly between these conditions. What works best for smooth idle may sacrifice high-RPM power, while timing optimized for peak power may cause rough idle or poor fuel economy at cruise.

Variable camshaft timing eliminates this compromise by allowing the engine computer to adjust valve timing continuously based on current operating conditions. The result is an engine that can deliver smooth idle, excellent fuel economy during cruising, strong acceleration when needed, and reduced emissions across all conditions.

How VCT Systems Work

VCT systems use hydraulic pressure from engine oil to adjust camshaft position relative to the crankshaft. The key components include the VCT solenoid, camshaft phaser, and engine control module (ECM).

The camshaft phaser is a mechanical device attached to the camshaft that can rotate the cam slightly forward or backward relative to its drive sprocket. This rotation changes when the valves controlled by that camshaft open and close. Most phasers use a vane-type design where internal oil pressure moves vanes to rotate the camshaft housing.

The VCT solenoid is an electronically controlled valve that directs oil pressure to the appropriate chambers within the phaser. By controlling oil flow, the solenoid determines whether the phaser advances timing, retards timing, or holds the current position. The solenoid receives commands from the engine computer and translates those commands into hydraulic action.

The engine control module monitors numerous sensors including engine speed, throttle position, coolant temperature, and camshaft position sensors. Based on this information and programmed logic, the ECM commands the VCT solenoid to achieve optimal timing for current conditions.

Different Manufacturer Names for VCT

While the underlying technology is similar across manufacturers, different companies use different names for their variable valve timing systems.

Ford calls their system Variable Camshaft Timing (VCT), which is where the VCT terminology originates. Ford’s system has been used extensively in their modular V8 engines including the 4.6L, 5.4L, and newer Coyote 5.0L engines.

General Motors uses the term Variable Valve Timing (VVT) for their systems. GM’s implementation appears across their engine lineup from four-cylinders to V8s.

Toyota developed Variable Valve Timing with intelligence (VVT-i) and has continuously refined the technology with variants including Dual VVT-i and VVT-iE (electric).

Honda pioneered variable valve timing with VTEC (Variable Valve Timing and Lift Electronic Control), which adjusts both timing and valve lift.

BMW uses VANOS (Variable Nockenwellensteuerung) for their variable valve timing systems.

Despite the different names, these systems all accomplish similar goals through comparable mechanisms. The diagnostic and repair principles discussed in this guide apply broadly across manufacturers, though specific procedures and components vary.

Benefits of Variable Camshaft Timing

Understanding VCT benefits explains why manufacturers have universally adopted this technology and why maintaining these systems properly matters.

Improved fuel economy results from optimizing valve timing for efficiency during light-load cruising. Earlier intake valve closing can improve volumetric efficiency at partial throttle, reducing the amount of fuel needed to produce required power.

Increased power output comes from advancing intake timing at high RPM, which improves cylinder filling and increases peak horsepower. VCT allows engines to produce more power without sacrificing low-speed drivability.

Reduced emissions result from precise control of valve overlap—the period when both intake and exhaust valves are open. Proper overlap management reduces unburned hydrocarbon emissions and supports exhaust gas recirculation for NOx reduction.

Smoother idle is achieved by retarding timing at idle, which reduces valve overlap and improves combustion stability at low engine speeds.

Better torque across the RPM range means the engine feels responsive and powerful whether accelerating from a stop or passing at highway speeds. VCT essentially allows one engine to behave like it has different camshafts for different situations.

What Happens When a VCT Solenoid Sticks Open

When a VCT solenoid becomes stuck in the open position, it allows continuous, uncontrolled oil flow to the camshaft phaser. This creates several problems that affect engine operation and can cause progressive damage if not addressed.

Immediate Effects of a Stuck Open Solenoid

A stuck open VCT solenoid prevents the engine computer from properly controlling camshaft position. Instead of precise timing adjustment, the phaser receives constant oil pressure that pushes it to one extreme of its travel range—typically the most advanced or most retarded position depending on system design.

Loss of timing control means the engine cannot optimize valve events for current operating conditions. The fixed timing position may work acceptably for some conditions but poorly for others, resulting in noticeable drivability issues.

Rough idle commonly occurs because the timing position appropriate for cruising or acceleration is inappropriate for idle. The engine may shake, hunt for stable RPM, or feel like it’s about to stall.

Poor acceleration may result if timing is stuck in a position that doesn’t support power production. The engine may feel sluggish or hesitant, particularly during hard acceleration.

Decreased fuel economy follows from non-optimal timing. The engine works less efficiently, consuming more fuel to produce the same power output.

Progressive Damage Potential

Beyond immediate drivability issues, a stuck VCT solenoid can cause progressive damage if not repaired.

Timing chain wear may accelerate because improper phaser operation places unusual stress on the chain and related components. Chains that should last the engine’s lifetime may wear prematurely.

Phaser damage can occur from continuous operation at extreme positions or from irregular oil pressure delivery. Phasers are precision components that depend on proper hydraulic control for longevity.

Increased oil consumption may develop as seals and gaskets in the VCT system wear from abnormal operation. Oil leaks from the phaser or solenoid area indicate progressive wear.

Catalytic converter stress results from the increased emissions that non-optimal timing produces. While this damage is slow to develop, it represents an expensive potential consequence of prolonged VCT problems.

Why Solenoids Stick Open

Understanding why VCT solenoids stick open helps with both diagnosis and prevention.

Debris contamination is the most common cause of stuck solenoids. Engine oil carries microscopic particles that can accumulate in the fine passages within the solenoid, preventing the internal valve from closing properly. This contamination often results from extended oil change intervals or low-quality oil filters.

Sludge accumulation from degraded oil can coat solenoid internals, preventing proper valve movement. Sludge typically results from overheated or over-aged oil that has broken down chemically.

Electrical failures can cause the solenoid to remain energized continuously, holding the valve open. Failed driver circuits in the ECM or wiring problems can create this condition.

Mechanical wear eventually affects any component. Solenoid valve seats, seals, and springs wear over time, potentially leading to incomplete closure even when the solenoid is commanded closed.

Manufacturing defects occasionally cause premature solenoid failure. Some engine families have known issues with VCT solenoid design that lead to higher failure rates.

Symptoms of a Stuck Open VCT Solenoid

Recognizing VCT solenoid problems early allows repair before progressive damage occurs. Multiple symptoms typically appear together, and their combination helps distinguish VCT issues from other engine problems.

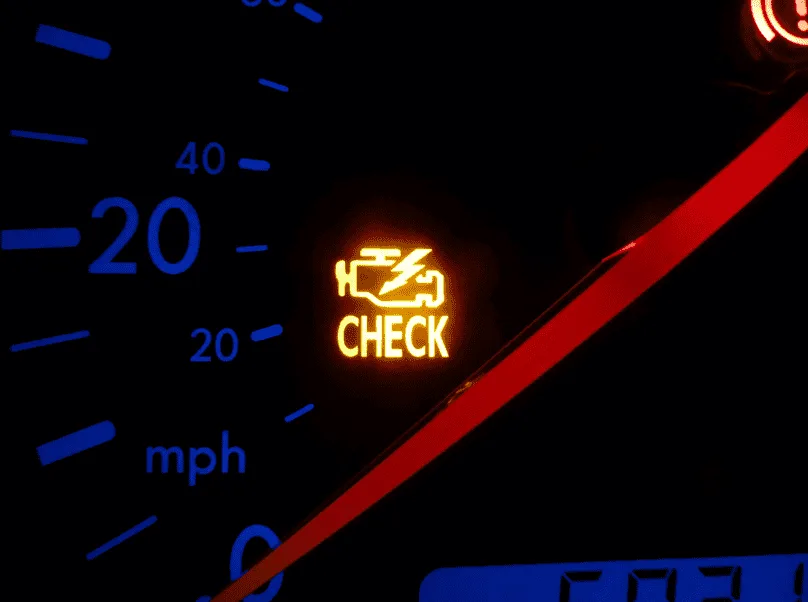

Check Engine Light Illumination

The check engine light is typically the first and most obvious indicator of VCT problems. Modern engine management systems continuously monitor VCT operation and detect when the system is not responding as expected.

Common diagnostic trouble codes associated with VCT solenoid problems include P0010 through P0014 (camshaft position actuator circuit issues), P0020 through P0024 (for dual-cam engines), and manufacturer-specific codes. Ford vehicles commonly display P0011, P0012, P0021, and P0022 codes for camshaft timing problems.

Code interpretation requires understanding what each code specifically indicates. Codes referencing “over-advanced” or “over-retarded” timing suggest the system is stuck at one extreme. Codes referencing “circuit” problems point toward electrical issues with the solenoid itself.

Intermittent codes may appear if the solenoid is sticking intermittently rather than continuously. The system may function normally sometimes while failing other times, creating a confusing symptom pattern.

Engine Performance Issues

VCT problems manifest through various performance symptoms that may be subtle or obvious depending on severity.

Rough idle is extremely common with stuck VCT solenoids. The engine may shake, hunt for stable RPM, or feel like it’s missing. This symptom is typically most noticeable when the engine is warm, as VCT systems often don’t activate until the engine reaches operating temperature.

Hesitation during acceleration occurs when timing cannot advance properly for power production. The engine may feel sluggish off the line or hesitate during passing maneuvers.

Power loss may be noticeable, particularly in the RPM range where VCT adjustments would normally provide the most benefit. Some drivers describe this as the engine feeling “flat” or lacking its normal responsiveness.

Stalling can occur in severe cases where timing is so far from ideal that combustion becomes unstable. This is more common at idle or low speeds where the engine is already running at the edge of stability.

Unusual Engine Noises

VCT system problems often produce distinctive sounds that help with diagnosis.

Rattling or chattering from the timing cover area may indicate phaser problems related to improper solenoid operation. This noise often changes with engine speed and is typically loudest at idle or during initial startup.

Clicking sounds can come from phasers receiving irregular oil pressure. The clicking may occur rhythmically with engine rotation or intermittently as pressure fluctuates.

Chain noise may become more prominent as improper VCT operation stresses timing chain components. A whining or grinding sound from the front of the engine warrants investigation.

Startup noise that diminishes after the engine warms up may indicate oil pressure related issues affecting the VCT system. Cold oil flows more slowly, and VCT problems are often most apparent before the engine reaches operating temperature.

Fuel Economy Decline

Decreased fuel economy often accompanies VCT problems, though this symptom can be subtle and develop gradually.

Measurable mileage reduction of 10 to 20 percent or more may occur depending on how far timing has deviated from optimal. Track fuel economy over multiple tanks to identify trends.

Inconsistent fuel economy with normal driving patterns may indicate intermittent VCT problems. Some drives may show normal economy while others are significantly worse.

Combined with other symptoms, fuel economy decline helps confirm VCT problems rather than other causes of reduced mileage.

Failed Emissions Testing

VCT problems can cause emissions test failures even when no other symptoms are obvious.

Elevated hydrocarbon emissions result from incomplete combustion due to improper timing. This is the most common emissions failure associated with VCT issues.

Increased NOx emissions may occur if timing positions reduce the effectiveness of the engine’s emissions controls.

Check engine light presence will cause automatic emissions test failure in most jurisdictions, regardless of actual tailpipe readings.

Diagnosing VCT Solenoid Problems

Accurate diagnosis ensures you address the actual problem rather than replacing components unnecessarily. VCT symptoms can overlap with other engine issues, making proper diagnostic procedures important.

Preliminary Inspection

Before diving into detailed diagnosis, basic inspection often reveals useful information.

Check oil level and condition. Low oil level reduces oil pressure available for VCT operation and is a common contributing factor to symptoms. Oil that appears dark, sludgy, or has visible debris suggests contamination that may affect solenoid operation.

Review maintenance history. Recent oil changes, particularly with different oil specifications, may correlate with symptom onset. Extended oil change intervals suggest contamination as a likely cause.

Listen to the engine. With the hood open, listen for unusual sounds from the timing cover area. Note when sounds occur—startup only, warm idle, acceleration—as this helps pinpoint issues.

Visual inspection of the VCT solenoid area may reveal obvious problems like oil leaks, damaged wiring, or disconnected connectors.

Diagnostic Trouble Code Analysis

Retrieving and interpreting diagnostic trouble codes provides the most direct insight into VCT problems.

Use an appropriate scan tool capable of reading manufacturer-specific codes, not just generic OBD-II codes. Many VCT-related codes are manufacturer-specific and won’t appear on basic code readers.

Record all codes present. Multiple codes may appear, and their combination helps pinpoint problems. A VCT code combined with oil pressure codes suggests different issues than a VCT code alone.

Check freeze frame data if available. This information shows engine conditions when the code was set, helping identify triggering circumstances.

Clear codes and test drive. After recording codes, clear them and drive the vehicle under various conditions. Note which codes return and under what circumstances.

Electrical Testing

Electrical problems with the VCT solenoid or its circuit can cause stuck-open symptoms.

Check connector condition. Corroded, damaged, or loose connectors can cause electrical issues. Clean contacts with electrical contact cleaner and ensure secure connection.

Measure solenoid resistance. Using a multimeter, measure resistance across the solenoid terminals. Compare to manufacturer specifications, typically 6 to 15 ohms depending on the application. Out-of-range readings indicate solenoid failure.

Test for power and ground. With the ignition on and solenoid connected, verify proper voltage supply and ground at the connector. Most solenoids receive battery voltage and are grounded through the ECM.

Check for shorts and opens. Test wiring between the solenoid and ECM for continuity and absence of shorts to ground or power. Damaged wiring can cause erratic solenoid operation.

Mechanical Testing

Mechanical testing determines whether the solenoid physically functions correctly.

Remove and inspect the solenoid. With the solenoid removed, inspect for debris, sludge, or damage. The valve should move freely when activated electrically.

Bench test solenoid operation. Apply 12 volts to the solenoid and listen for a click indicating the valve opening. Remove power and listen for the click of the valve closing. A solenoid that doesn’t click or clicks weakly may be stuck or worn.

Check screen condition. Many VCT solenoids have integral screens that filter oil before it enters the valve. Clogged screens cause pressure problems and should be cleaned or replaced.

Inspect the mounting surface. The solenoid sealing surface must be clean and undamaged for proper installation. Debris or damage here can cause oil leaks or improper operation.

Oil Pressure Verification

Adequate oil pressure is essential for VCT operation, and pressure problems can mimic solenoid failure.

Check oil pressure with a gauge. Actual pressure measurement is more reliable than dashboard warning lights. Compare readings to manufacturer specifications at idle and elevated RPM.

Verify pressure at operating temperature. Oil pressure typically decreases as the engine warms and oil thins. Pressure adequate when cold may be insufficient when hot.

Consider oil viscosity. Using oil viscosity different from manufacturer specifications can affect pressure and VCT operation. Verify correct oil specification is being used.

How to Replace a VCT Solenoid

If diagnosis confirms solenoid failure, replacement is straightforward on most vehicles. The procedure varies somewhat by vehicle, but general steps apply broadly.

Tools and Materials Needed

Gather necessary items before beginning to avoid interruptions.

Basic hand tools including appropriate sockets, wrenches, and screwdrivers for your vehicle. Most solenoids use 8mm or 10mm fasteners.

Replacement solenoid of the correct part number for your vehicle. OEM parts are preferable, though quality aftermarket options exist for many applications.

Fresh engine oil to top off after the procedure. Some oil loss is normal during solenoid removal.

Clean rags or shop towels for cleaning mounting surfaces and catching spilled oil.

Dielectric grease for electrical connector protection after reassembly.

Lithium grease for lubricating solenoid O-rings before installation.

Service manual or repair information specific to your vehicle for detailed procedures and specifications.

Safety Precautions

Take appropriate safety measures before beginning work.

Disconnect the battery to prevent electrical shorts or accidental engine starting. Wait several minutes after disconnection before working near electrical components.

Allow the engine to cool if recently operated. The engine compartment contains hot components that can cause burns.

Work in a well-ventilated area. Engine work may expose you to oil vapors and other fumes.

Use appropriate personal protective equipment including safety glasses and gloves.

Step-by-Step Replacement Procedure

Follow these general steps, adapting as necessary for your specific vehicle.

Step 1: Access the solenoid. Remove any covers, air intake components, or other parts blocking access to the VCT solenoid. Document what you remove to ensure proper reassembly.

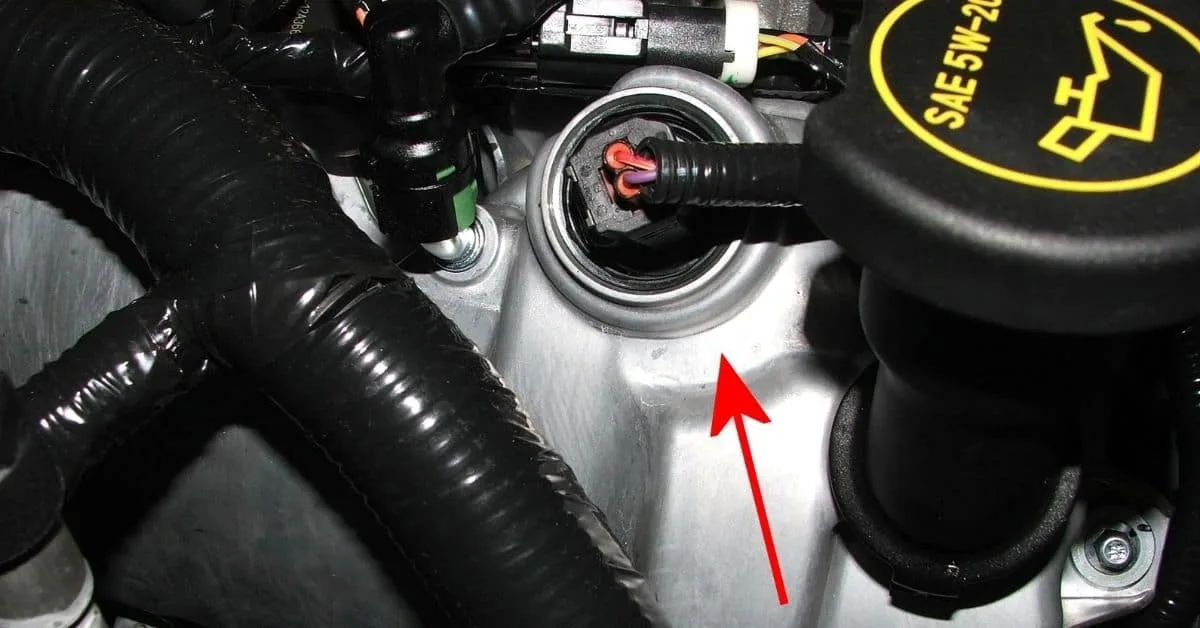

Step 2: Locate the solenoid. VCT solenoids are typically located on the front of the engine near the valve cover, mounted in or near the timing cover. Identify the electrical connector and mounting bolt(s).

Step 3: Disconnect the electrical connector. Press the release tab and carefully pull the connector straight off the solenoid. Avoid pulling on wires.

Step 4: Remove mounting bolt(s). Most solenoids are secured by one or two bolts. Remove and set aside in a safe location.

Step 5: Extract the solenoid. Pull the solenoid straight out of its bore. Some twisting may help if the O-ring is stuck. Have a rag ready to catch any oil that drains.

Step 6: Inspect and clean. Examine the old solenoid for debris or damage. Clean the mounting surface and bore thoroughly. Remove any debris that could contaminate the new solenoid.

Step 7: Prepare the new solenoid. Apply a light coating of lithium grease to the O-ring(s) on the new solenoid. This aids installation and ensures proper sealing.

Step 8: Install the new solenoid. Insert the solenoid into its bore, pushing straight in until fully seated. Avoid cocking the solenoid, which could damage the O-ring.

Step 9: Secure with mounting bolt(s). Thread mounting bolts by hand to ensure proper engagement, then tighten to specification. Over-tightening can crack the solenoid housing.

Step 10: Reconnect the electrical connector. Push the connector onto the solenoid until it clicks securely. Apply dielectric grease to the connector seal for corrosion protection.

Step 11: Reinstall removed components. Replace any covers, intake components, or other parts removed for access.

Step 12: Reconnect the battery. Reconnect the negative battery terminal.

Step 13: Check and add oil. Check oil level and add as needed to replace any oil lost during the procedure.

Step 14: Start and test. Start the engine and check for leaks around the new solenoid. Listen for unusual sounds and verify the check engine light behavior. A test drive under various conditions confirms proper operation.

Post-Installation Considerations

After replacement, a few additional steps ensure everything is working correctly.

Clear diagnostic codes. Using a scan tool, clear any stored codes related to VCT operation. This allows fresh monitoring of the new solenoid.

Perform a test drive. Drive the vehicle under conditions that previously triggered symptoms. Include varied speeds, accelerations, and both cold and warm operation.

Monitor for code return. If codes return after clearing, additional diagnosis may be needed. New part failure is possible but uncommon; recurring codes more often indicate other issues.

Check for leaks after driving. Re-inspect the solenoid area after the engine has cycled through temperature changes that stress seals.

VCT Solenoid Problems by Vehicle

Different vehicles have different VCT system designs and common failure patterns. Understanding issues specific to your vehicle aids diagnosis and repair.

Ford 5.4L Triton V8

Ford’s 5.4L Triton engine, used extensively in F-150 trucks, Expedition SUVs, and other vehicles from 1997 through 2010, has well-documented VCT issues.

Common symptoms include rough idle, loss of power, check engine lights with P0010-series codes, and timing chain noise. The 3-valve version (2004-2010) is particularly prone to VCT and related phaser problems.

Known issues include cam phaser wear, VCT solenoid failure, and timing chain tensioner problems. These issues often occur together, and addressing only the solenoid may not resolve symptoms if phasers or tensioners are also worn.

Ford TSBs (Technical Service Bulletins) address various VCT-related concerns on these engines. Check for applicable TSBs before repair, as they may specify updated parts or procedures.

Repair considerations may include phaser replacement alongside solenoid replacement if symptoms suggest phaser wear. The phasers are located behind the timing cover and require significant disassembly to access.

Ford Coyote 5.0L V8

Ford’s newer Coyote 5.0L engine (2011-present) uses a more advanced Twin Independent Variable Camshaft Timing (Ti-VCT) system with four solenoids controlling both intake and exhaust camshafts on both cylinder banks.

System complexity means more potential failure points, but the individual components are generally more reliable than earlier designs.

Common issues include solenoid screen clogging, electrical connector problems, and occasional solenoid failure. Oil maintenance is particularly important for these systems.

Diagnosis requires determining which of the four solenoids is problematic, as symptoms vary depending on which camshaft is affected.

GM LS and LT Engines

General Motors’ LS-series and newer LT-series engines use VVT (Variable Valve Timing) systems similar in concept to Ford’s VCT.

Single-cam design on these pushrod engines means only one solenoid controls timing, simplifying diagnosis compared to dual-overhead-cam engines.

Common symptoms include rough idle, reduced fuel economy, and cam position sensor codes. The solenoid on these engines is typically located at the front of the engine near the timing cover.

Known issues include solenoid screen clogging and oil pressure related problems. Maintaining proper oil level and using quality oil are important for system longevity.

Repair accessibility is generally good, with the solenoid accessible without major disassembly on most applications.

Toyota VVT-i Systems

Toyota’s VVT-i (Variable Valve Timing with intelligence) systems are known for reliability, but failures do occur.

Common symptoms include rough idle, reduced power, and check engine lights. Toyota-specific codes in the P0010-P0024 range indicate VVT-related issues.

Oil sensitivity is notable in Toyota VVT-i systems. Using non-recommended oil or extending oil change intervals can cause problems that might not appear immediately but develop over time.

Repair approach typically involves solenoid replacement, though severely contaminated systems may require additional cleaning or phaser work.

BMW VANOS Systems

BMW’s VANOS variable valve timing systems have unique characteristics and common failure patterns.

System design varies by engine generation, with both single and double VANOS systems in use. Double VANOS controls both intake and exhaust timing.

Common failures include solenoid seals, VANOS unit internal seals, and solenoid electrical issues. Rattling noise during startup is a classic VANOS failure symptom.

Repair complexity varies significantly by engine. Some applications allow simple solenoid replacement while others require removal of major components to access VANOS units.

Specialized knowledge and tools are often required for BMW VANOS repair. Many owners find dealer or specialist service worthwhile for these systems.

Preventing VCT Solenoid Problems

Prevention is more economical and less disruptive than repair. Several maintenance practices significantly reduce VCT solenoid failure risk.

Proper Oil Maintenance

Oil quality and change intervals profoundly affect VCT system longevity.

Use manufacturer-specified oil viscosity. VCT systems are designed for specific oil characteristics. Using significantly different viscosity can affect hydraulic response and accelerate wear.

Choose quality oil meeting appropriate specifications. Modern engines typically require oils meeting specific API or manufacturer standards. These specifications ensure oil properties that support VCT operation.

Follow recommended change intervals. Extended oil changes allow contamination accumulation that damages VCT components. In severe service (frequent short trips, dusty conditions, towing), consider shorter intervals.

Use quality oil filters. Filters that don’t effectively capture contaminants allow particles to reach VCT solenoids. OEM or premium aftermarket filters provide the best protection.

Maintain Proper Oil Level

Low oil level is a common contributing factor to VCT problems.

Check oil regularly. Monthly checks or more frequently for vehicles that consume oil ensure adequate level is maintained.

Address oil consumption promptly. Engines that consume excessive oil may have underlying problems that should be investigated. Running consistently low on oil damages VCT systems and other components.

Don’t overfill. Excessive oil can cause aeration that affects hydraulic systems including VCT. Fill to the appropriate mark, not above.

Address Related Issues Promptly

Other engine problems can affect VCT system health.

Fix oil leaks. Leaks reduce oil level over time and indicate seal problems that may also affect VCT components.

Maintain cooling system. Overheating accelerates oil degradation, creating sludge that damages VCT solenoids. Proper cooling system maintenance protects oil quality.

Replace worn timing chain components. Worn chains and tensioners place stress on VCT phasers, potentially accelerating failure of otherwise healthy components.

Warm-Up Practices

How you operate the engine affects VCT system longevity.

Allow brief warm-up before aggressive driving. Oil pressure and flow characteristics change significantly as oil warms. Brief idling (30 seconds to a minute) allows oil pressure to stabilize before demanding performance.

Avoid extended idling. While brief warm-up helps, extended idling doesn’t benefit the engine and may actually accelerate some wear patterns.

Drive gently until fully warmed. Even after initial warm-up, avoid demanding full power until the engine has reached normal operating temperature.

When to Seek Professional Help

While many VCT solenoid problems are DIY-repairable, some situations warrant professional diagnosis and repair.

Complex Diagnostic Situations

Professional help is valuable when diagnosis is unclear.

Multiple codes pointing to different systems may indicate complex interactions that require systematic professional diagnosis.

Symptoms that don’t match common patterns may indicate unusual failures or multiple concurrent problems.

Intermittent problems that are difficult to reproduce may require professional monitoring equipment to capture.

Repairs Requiring Special Tools

Some VCT repairs require tools most DIYers don’t have.

Timing chain and phaser work often requires special holding tools, timing tools, and sometimes hydraulic equipment.

ECM programming may be required after certain repairs. This typically requires dealer or specialist equipment.

Pressure testing VCT systems requires specialized gauges and adapters not commonly available.

When Time Is Critical

Sometimes the practical choice is professional repair despite being technically capable.

Vehicle needed urgently may make professional repair worthwhile even for repairs you could otherwise do yourself.

Limited workspace or tools can make DIY repair impractical or frustrating.

Warranty considerations may require dealer repair to maintain coverage.

Frequently Asked Questions About VCT Solenoid Problems

Can I drive with a stuck VCT solenoid?

You can typically drive short distances with a stuck VCT solenoid, but it’s not recommended for extended periods. Continued operation with improper valve timing causes increased wear on timing chain components, reduced fuel economy, potential catalyst damage from increased emissions, and possible progressive damage to the phaser. Address the problem as soon as practical to avoid these consequences.

How much does VCT solenoid replacement cost?

VCT solenoid replacement typically costs $150 to $400 for professional repair, including parts and labor. DIY repair reduces this to $50 to $150 for the part alone. Costs vary by vehicle, with some applications being more labor-intensive than others. If phasers or other components also need replacement, costs increase significantly.

Will a VCT solenoid problem cause engine damage?

A stuck VCT solenoid itself doesn’t directly damage the engine, but continued operation with improper timing can cause progressive damage to timing chain components, accelerated wear on phasers, and increased stress on the catalytic converter. Prompt repair prevents these secondary issues.

Can I clean a stuck VCT solenoid instead of replacing it?

Cleaning is worth attempting, particularly if contamination is the suspected cause. Remove the solenoid and clean thoroughly with carburetor cleaner or brake cleaner. Ensure the screen (if equipped) is clear. If the solenoid functions normally after cleaning and the engine runs properly, cleaning may be sufficient. However, if contamination was severe or if the solenoid has internal wear, replacement may ultimately be necessary.

How often should VCT solenoids be replaced?

VCT solenoids don’t have a specific replacement interval. With proper oil maintenance, they should last the life of the engine. Replacement becomes necessary only when failure occurs. Focus on preventive maintenance—proper oil changes with quality oil and filters—rather than preemptive replacement.

Why does my VCT solenoid keep failing?

Repeated VCT solenoid failure usually indicates an underlying issue. Common causes include oil quality or contamination problems, extended oil change intervals, incorrect oil viscosity, low oil pressure from worn oil pump or bearings, or debris from other engine wear reaching the solenoid. Address the root cause to prevent continued failures.

Additional Resources

For further information on variable valve timing systems and engine maintenance, several resources provide valuable guidance.

The Automotive Service Excellence (ASE) organization provides training and certification information for technicians working on modern engine management systems. Understanding ASE certifications can help you evaluate repair shop qualifications.

Vehicle manufacturer technical information, often available through dealer service departments or subscription services, provides the most detailed specifications and procedures for your specific application.

Online forums and communities for specific vehicle makes often contain valuable real-world experience from owners who have addressed VCT problems on vehicles identical to yours. The iATN (International Automotive Technicians Network) provides professional-level technical information for complex diagnostic situations.

Understanding VCT Solenoid Failure Modes

VCT solenoids can fail in different ways, and understanding these failure modes helps with both diagnosis and prevention.

Stuck Open Failure

When a VCT solenoid becomes stuck in the open position, it continuously allows oil flow to one side of the camshaft phaser. This condition forces the phaser to its most advanced or most retarded position (depending on circuit design) and prevents the ECM from making timing adjustments.

Causes of stuck open failure include debris contamination holding the valve open, worn or damaged valve seats that prevent proper sealing, spring failure that allows the valve to remain open, and electrical issues causing continuous solenoid energization.

Symptoms specific to stuck open include timing that remains at one extreme, codes indicating “over-advanced” or “over-retarded” timing, and symptoms that are consistent rather than intermittent. The engine may run reasonably well under some conditions but poorly under others, depending on where timing is stuck.

Repair approach for stuck open solenoids typically involves replacement, though cleaning may restore function if debris contamination is the cause. Testing the removed solenoid by applying and removing power while listening for clicks helps confirm the valve is actually stuck.

Stuck Closed Failure

A stuck closed solenoid prevents oil flow to the phaser entirely, locking timing at its default position and preventing any VCT adjustment.

Causes of stuck closed failure include sludge or debris blocking the valve from opening, electrical failure preventing solenoid energization, and internal mechanical seizure.

Symptoms specific to stuck closed include no timing adjustment under any conditions, codes indicating circuit problems or no response to commands, and performance that remains constant (though non-optimal) across all operating conditions.

Diagnostic distinction from stuck open is that stuck closed typically produces codes indicating inability to adjust timing rather than timing stuck at extremes. The timing position at rest (default) determines engine behavior.

Intermittent Failure

Intermittent VCT solenoid problems create confusing symptom patterns that can be difficult to diagnose.

Causes of intermittent failure include marginal debris contamination that sometimes affects valve operation, electrical connector problems that create intermittent connection, temperature-related issues where expansion affects operation, and worn components that sometimes function and sometimes fail.

Symptoms of intermittent failure include codes that set and clear seemingly randomly, symptoms that come and go, performance that varies between drives, and difficulty reproducing problems during diagnosis.

Diagnostic approach for intermittent problems requires monitoring over time rather than single-point testing. Data logging during normal driving can capture events that don’t occur during stationary testing.

Slow Response Failure

Some solenoid failures involve sluggish rather than complete loss of response. The valve opens and closes, but not quickly enough for proper system function.

Causes of slow response include partial contamination that restricts but doesn’t block flow, internal wear that increases friction, weak springs that slow valve return, and electrical issues that reduce solenoid force.

Symptoms of slow response include delayed timing changes that create hesitation, hunting or unstable idle as the system struggles to maintain position, and codes indicating timing correlation errors where actual position doesn’t match commanded position.

Testing for slow response requires dynamic testing that measures response time rather than simple go/no-go testing. Professional scan tools with real-time monitoring can capture response characteristics.

The Role of Engine Oil in VCT System Health

Engine oil is literally the lifeblood of VCT systems, and understanding this relationship emphasizes the importance of proper oil maintenance.

Oil as Hydraulic Medium

VCT systems use engine oil as their hydraulic medium, and oil characteristics directly affect system performance.

Viscosity affects response time. Oil that is too thick moves slowly through passages, delaying VCT response. Oil that is too thin may not maintain adequate pressure. Manufacturer-specified viscosity represents the optimal balance for the system’s design.

Temperature affects oil behavior. Cold oil is thicker and flows more slowly, which is why VCT systems often don’t activate until the engine warms up. Overheated oil becomes too thin and may not maintain adequate pressure.

Pressure is critical. VCT phasers require specific oil pressure ranges to operate correctly. Low pressure prevents adequate force for timing adjustment, while excessive pressure can cause control issues.

Oil Contamination Effects

Contaminants in engine oil are the primary cause of VCT solenoid problems.

Particulate contamination from normal engine wear, failed air filtration, or external contamination can block solenoid passages. VCT solenoid passages are very small, and particles that pass through the oil filter may still be large enough to cause problems.

Sludge formation from oxidized or degraded oil creates sticky deposits that impede valve movement. Sludge typically results from overheated oil, extended change intervals, or using oil that doesn’t meet specifications.

Fuel dilution from incomplete combustion or failed fuel system components thins the oil and reduces its lubricating properties. Diluted oil may not maintain adequate pressure and loses its ability to protect components.

Coolant contamination from head gasket or other failures creates a mixture that loses both lubricating and hydraulic properties. This contamination is particularly damaging to precision components like VCT solenoids.

Oil Specification Importance

Using the correct oil specification is crucial for VCT system health.

Manufacturer specifications exist for reasons. Engineers select oil specifications based on the requirements of all engine systems including VCT. Ignoring these specifications may seem harmless initially but can cause problems over time.

Modern specifications address VCT needs. Current API specifications and manufacturer-specific standards include requirements that support VCT operation. Older specifications may lack these provisions.

“Universal” oils may not be appropriate. Products marketed as suitable for all vehicles may not meet the specific needs of engines with advanced VCT systems. Check that any oil you use explicitly meets your vehicle’s requirements.

Oil Change Interval Considerations

How often you change oil significantly affects VCT system longevity.

Manufacturer recommendations are minimums. While modern oils and engines allow extended intervals under ideal conditions, severe service significantly shortens appropriate intervals.

Severe service includes many common conditions. Short trips that don’t allow full warm-up, dusty environments, towing or heavy loads, and extreme temperatures all constitute severe service that requires shorter intervals.

Oil analysis can guide intervals. Laboratory oil analysis reveals actual oil condition, allowing you to optimize change intervals for your specific use rather than guessing.

VCT problems are expensive. When considering whether to extend oil change intervals, weigh the modest savings against the potential cost of VCT solenoid, phaser, or timing component replacement.

Advanced Diagnostics for Persistent VCT Problems

When basic diagnosis doesn’t resolve VCT issues, advanced techniques may be required.

Live Data Analysis

Modern scan tools provide real-time data that reveals VCT system operation in detail.

Camshaft position data shows actual versus commanded timing. Comparing these values reveals whether the system is responding appropriately to commands.

Oil pressure monitoring during VCT activation can reveal pressure-related issues that affect system response.

Solenoid duty cycle information shows how hard the ECM is working to maintain timing position. Excessive duty cycle may indicate system struggling to overcome friction or contamination.

Temperature correlation between symptoms and engine temperature can point toward oil viscosity or pressure issues.

Pressure Testing

Direct pressure measurement provides objective data about VCT system hydraulics.

System pressure testing using specialized gauges and adapters can verify that adequate pressure reaches the VCT solenoid and phaser.

Pressure at the phaser may differ from general oil pressure due to passage restrictions or solenoid problems. Direct measurement isolates these issues.

Pressure response testing measures how quickly pressure changes when the solenoid is commanded. Slow response indicates restriction or other issues.

Component-Level Testing

Isolating individual components identifies exactly what needs replacement.

Solenoid bench testing removes the solenoid from the vehicle for controlled testing. Applying power while measuring flow or listening for clicks reveals valve operation independent of vehicle systems.

Phaser inspection during timing component service reveals wear that affects VCT operation. Worn phasers may not respond properly even with perfect solenoid function.

Timing chain and tensioner evaluation identifies wear that may cause symptoms similar to VCT problems. Stretched chains or weak tensioners can cause timing correlation issues.

Pattern Failures and Technical Service Bulletins

Manufacturer-documented problems can shortcut diagnosis.

Technical Service Bulletins (TSBs) document known issues and recommended repairs. Checking for applicable TSBs before extensive diagnosis may reveal known solutions.

Recall information may apply to VCT-related components on some vehicles. Recall repairs are performed at no cost and should be completed before other diagnosis.

Online forums and databases compile real-world failure patterns that may not appear in official documentation. These resources can suggest likely causes based on your specific vehicle.

Cost Analysis: Repair vs. Replacement vs. Professional Service

Understanding the economics of VCT repair options helps with decision-making.

DIY Solenoid Replacement Costs

Do-it-yourself repair offers the lowest cost when appropriate.

Parts cost for a VCT solenoid typically ranges from $30 to $150 depending on vehicle and whether you choose OEM or aftermarket. Quality aftermarket solenoids can perform as well as OEM at lower cost.

Tool requirements are minimal for most solenoid replacements. If you already have basic tools, no additional investment may be required.

Time investment varies by vehicle and experience level. Plan for 1 to 3 hours for most applications, possibly longer for first-time attempts or difficult-access vehicles.

Total DIY cost typically falls between $30 and $200, primarily parts with minimal other expenses.

Professional Solenoid Replacement Costs

Professional repair adds labor cost but provides expertise and warranty.

Labor charges vary by region and shop type. Expect 0.5 to 2 hours labor at rates ranging from $80 to $150 per hour, translating to $40 to $300 in labor charges.

Parts markup at repair shops typically adds 20 to 50 percent to parts cost. A solenoid costing $100 retail may be charged at $120 to $150.

Diagnostic charges may add $50 to $150 if you haven’t already identified the problem. Some shops waive diagnostic fees if you proceed with repair.

Total professional cost typically ranges from $150 to $450 for straightforward solenoid replacement.

Related Component Costs

VCT problems sometimes involve components beyond the solenoid.

Cam phaser replacement is a major repair requiring timing cover removal. Costs typically range from $800 to $2,000 for parts and labor on most applications, potentially higher on some vehicles.

Timing chain and tensioner service may be recommended when accessing phasers. Adding these components to a phaser job increases total cost by $200 to $500 but may be wise given the labor already involved.

Complete VCT system overhaul addressing all related components can cost $1,500 to $3,500 depending on vehicle and component choices.

Economic Decision Framework

Consider several factors when deciding how to proceed.

Vehicle value and condition affect how much repair investment is sensible. Extensive repairs may not be justified on older, high-mileage vehicles.

Failure severity and risk should influence urgency and repair scope. Progressive damage potential justifies prompt, thorough repair.

Your mechanical capability determines whether DIY is practical. Honest self-assessment prevents creating bigger problems.

Time availability affects the DIY versus professional decision. If you need the vehicle quickly, professional repair may be worthwhile even if you could do the work yourself.

Real-World VCT Solenoid Repair Scenarios

Examining actual cases illustrates how VCT problems present and resolve in practice.

Scenario 1: The Rough-Running F-150

A 2007 Ford F-150 with the 5.4L 3-valve engine began running rough at idle and displayed check engine light with code P0012.

Symptoms: Rough idle particularly when warm, occasional stalling at stops, and reduced fuel economy. The engine ran acceptably at highway speeds but poorly at idle.

Diagnosis: Code P0012 indicates “Camshaft Position A – Timing Over-Retarded (Bank 1).” Visual inspection revealed dark, contaminated oil despite recent service. The VCT solenoid was removed and found to have a clogged screen and debris in the valve assembly.

Repair: The solenoid was replaced with an OEM unit, and a complete oil flush with fresh oil and filter was performed. Engine oil was changed again after 500 miles to remove any remaining contamination.

Outcome: Normal operation was restored. The owner committed to 5,000-mile oil change intervals instead of the previous 7,500-mile intervals.

Cost: $95 for solenoid plus $75 for oil flush and changes—total $170 DIY cost.

Scenario 2: The Noisy Tahoe

A 2015 Chevrolet Tahoe with the 5.3L V8 developed a rattling noise at startup that diminished after the engine warmed up.

Symptoms: Rattle lasting 2 to 5 seconds at cold startup, mild rough idle, and check engine light with code P0011.

Diagnosis: The startup rattle is characteristic of timing chain slack, but code P0011 (Camshaft Position Timing Over-Advanced) pointed to VCT involvement. Inspection revealed slightly low oil level and normal-appearing oil. The VCT solenoid was removed and tested, showing slow response when bench tested.

Repair: The solenoid was replaced and oil level corrected. The startup rattle persisted slightly but improved significantly.

Outcome: The persistent mild rattle suggested early timing chain wear, which the owner chose to monitor rather than address immediately. The VCT codes cleared and did not return.

Cost: $75 for aftermarket solenoid, DIY installation—total $75.

Scenario 3: The Problematic Expedition

A 2010 Ford Expedition with the 5.4L engine had recurring VCT codes despite multiple solenoid replacements.

Symptoms: Rough idle, loss of power, and check engine light returning within weeks of each solenoid replacement. Three solenoids had been installed over 18 months.

Diagnosis: The repeated failures suggested a root cause beyond the solenoid itself. Oil analysis revealed high metallic content indicating engine wear. Inspection of the removed solenoid showed fine metal particles in the screen despite fresh oil changes.

Root cause: Cam bearing wear was generating metal particles that contaminated each new solenoid. The underlying wear problem prevented lasting repair with solenoid replacement alone.

Resolution: Given the vehicle’s age (175,000 miles) and the extent of engine wear indicated by analysis, the owner chose to trade the vehicle rather than pursue engine rebuild.

Lesson: Repeated VCT solenoid failures often indicate deeper problems that solenoid replacement cannot address.

Scenario 4: The BMW Startup Rattle

A 2008 BMW 328i developed the classic VANOS startup rattle along with rough idle and reduced performance.

Symptoms: Significant rattle lasting 10 to 15 seconds at startup, rough idle, and codes for both intake and exhaust VANOS solenoids.

Diagnosis: BMW’s Double VANOS system uses solenoids with seals that commonly fail around this age and mileage. Both intake and exhaust solenoids showed deteriorated seals upon inspection.

Repair: Both VANOS solenoids were replaced with updated OEM units featuring improved seals. The repair required specialized knowledge of BMW systems but was completed without major disassembly.

Outcome: Complete resolution of startup rattle, smooth idle, and normal performance restored.

Cost: $350 for OEM solenoids plus $400 dealer labor—total $750.

The Future of Variable Valve Timing Technology

Understanding where VCT technology is heading provides context for current systems and hints at future maintenance considerations.

Evolution of Current Systems

Variable valve timing continues advancing within current design paradigms.

Increased adjustment range in newer systems provides greater flexibility. Wider timing adjustment enables more aggressive optimization across operating conditions.

Faster response through improved solenoid and phaser designs allows more rapid timing adjustments. Quicker response supports more dynamic engine management strategies.

Integration with other technologies combines VCT with direct injection, turbocharging, and cylinder deactivation for comprehensive efficiency optimization.

Electric VCT Systems

Some manufacturers are moving from hydraulic to electric VCT actuation.

Electric phasers use motors rather than oil pressure to adjust timing. This eliminates oil pressure dependency and enables faster, more precise control.

Advantages include reduced sensitivity to oil condition, faster response time, and the ability to adjust timing independent of engine oil temperature.

Maintenance implications shift from oil-related issues to electrical system concerns. Electric VCT may prove more reliable but will present different failure modes when problems do occur.

Variable Valve Lift

Beyond timing, some systems also adjust how far valves open.

Combined timing and lift control provides even greater flexibility than timing-only systems. Honda’s VTEC was an early example; newer systems offer continuous variation rather than stepped changes.

Complexity increases with these more advanced systems, potentially creating new maintenance considerations. However, the added complexity serves worthwhile performance and efficiency goals.

Integration with Hybrid Systems

Variable valve timing plays a role in hybrid vehicle optimization.

Stop-start systems benefit from VCT that enables quick restart with minimal noise and vibration.

Hybrid power management uses VCT to optimize the combustion engine’s contribution to the hybrid system, adjusting valve timing based on electric motor assistance availability.

Common VCT Questions from Vehicle Owners

Beyond the formal FAQ section, vehicle owners frequently have additional questions about VCT systems and their maintenance. Addressing these common concerns provides practical guidance.

“My mechanic says I need phasers replaced. Is that really necessary?”

This question comes up frequently, particularly with Ford 5.4L engines known for phaser problems.

Context matters significantly. If you’ve replaced the VCT solenoid and symptoms persist, phaser wear becomes a likely explanation. However, phasers are expensive, and some shops may recommend replacement prematurely.

Request supporting evidence. A reputable shop should be able to show you scan tool data demonstrating timing correlation errors, let you hear distinctive phaser noise, or demonstrate other objective evidence of phaser failure.

Get a second opinion for expensive repairs like phaser replacement. The diagnosis may be correct, but confirmation from another qualified technician provides confidence before authorizing major work.

Consider the repair economics. On high-mileage vehicles, the cost of phasers plus timing chain components can approach the vehicle’s value. Honest evaluation of whether the repair makes financial sense is important.

“I changed my own oil and now have VCT codes. Did I cause this?”

This concern arises when VCT problems appear shortly after an oil change.

Coincidence is common. VCT problems often develop gradually, and code-triggering can happen to coincide with scheduled maintenance. The oil change may not have caused the problem.

However, check the basics. Verify you used the correct oil viscosity and specification. Confirm oil level is correct—not too low or too high. Ensure the filter is properly installed and appropriate for your vehicle.

Consider what else you might have disturbed. If you accessed areas near VCT components during the oil change, you may have bumped a connector or disturbed wiring.

Give it time. If the oil specification is correct and level is proper, drive the vehicle normally and see if codes clear. Some VCT codes will clear once the system has opportunity to recalibrate.

“Is it worth fixing VCT problems on a high-mileage vehicle?”

This question reflects practical concern about repair value versus vehicle value.

Evaluate current vehicle condition. If the engine is otherwise healthy and the vehicle meets your needs, VCT repair may be worthwhile even on older vehicles. A running vehicle has value beyond book values.

Consider repair scope. Simple solenoid replacement for a few hundred dollars is almost always worthwhile if it restores proper operation. Expensive repairs involving phasers and timing chains require more careful cost-benefit analysis.

Factor in replacement vehicle costs. The cost of purchasing a different vehicle includes not just the purchase price but also the unknown issues that come with any used vehicle. A known vehicle with a specific known problem may be a better investment than an unknown vehicle.

Get honest assessment. A trustworthy mechanic can help evaluate whether repair makes sense given the vehicle’s overall condition and your needs.

“Can I prevent VCT problems with additives?”

Various oil additives claim to support VCT system health, raising questions about their effectiveness.

Oil additives are not substitutes for proper maintenance. No additive eliminates the need for correct oil specification and regular oil changes. Focusing on these fundamentals provides the most reliable VCT protection.

Some additives may provide marginal benefits. Products that improve oil cleanliness or reduce sludge formation may offer modest support for VCT systems. However, their effectiveness is often difficult to verify objectively.

Risk of harm is generally low. Most mainstream oil additives won’t damage VCT systems when used as directed. However, they also may not provide enough benefit to justify their cost.

Focus on proven practices. Correct oil specification, appropriate change intervals, and quality filters have proven track records for VCT system protection. Additives are at best supplementary.

VCT System Maintenance Checklist

A systematic approach to VCT system care helps ensure nothing is overlooked. Use this checklist as a guide for ongoing maintenance.

Every Oil Change

Perform these checks with each oil change to maintain VCT health.

Verify correct oil specification. Confirm the oil you’re using meets your vehicle’s requirements. Check the oil bottle label against your owner’s manual requirements.

Confirm proper oil level. After the change, verify the level is between the minimum and maximum marks on the dipstick. Recheck after running the engine briefly.

Inspect oil condition on the old oil. Note any unusual appearance, smell, or presence of particles. These can indicate problems that affect VCT systems.

Use quality filters. Ensure the filter installed meets or exceeds OEM specifications. Cheap filters may not adequately protect VCT components.

Reset oil life monitor if equipped. Modern vehicles track oil life based on operating conditions. Resetting the monitor after changes ensures accurate monitoring.

Every 15,000 Miles or Annually

Perform these additional checks periodically regardless of whether symptoms exist.

Check for VCT-related codes. Even without a check engine light, pending codes may indicate developing issues. Scan for codes periodically to catch problems early.

Listen for unusual sounds. Pay attention to startup sounds and idle quality. Developing VCT problems often produce subtle sounds before triggering codes.

Monitor fuel economy trends. Gradually declining fuel economy may indicate VCT issues even before other symptoms appear.

Inspect VCT solenoid area. Look for oil leaks or debris accumulation around the solenoid. External condition may hint at internal issues.

At Timing Component Service Intervals

When major timing component service is performed, address VCT components appropriately.

Inspect phasers during timing chain service. If the timing cover is removed for any reason, evaluate phaser condition before reassembly.

Replace VCT solenoids preventively if phasers are replaced. Given the minimal additional cost when the system is already apart, new solenoids ensure optimal operation with new phasers.

Verify oil pump condition. Oil pressure is essential for VCT operation. Confirm the oil pump is delivering adequate pressure before reassembling.

Document all work. Records of timing component service support future maintenance decisions and vehicle resale.

Understanding VCT-Related Diagnostic Codes

Proper interpretation of diagnostic codes speeds diagnosis and repair. Here’s an expanded guide to common VCT-related codes and their implications.

P0010-P0014 Series (Bank 1 Intake)

These codes relate to the intake camshaft on cylinder bank 1.

P0010: Intake Camshaft Position Actuator Circuit (Bank 1) indicates electrical problems with the VCT solenoid circuit. Check wiring, connectors, and solenoid electrical function.

P0011: Intake Camshaft Position Timing Over-Advanced (Bank 1) means timing is beyond the advanced limit. This typically indicates a stuck solenoid or phaser.

P0012: Intake Camshaft Position Timing Over-Retarded (Bank 1) means timing is beyond the retarded limit. Again, stuck solenoid or phaser is the likely cause.

P0013: Intake Camshaft Position Actuator Circuit High (Bank 1) indicates high voltage in the solenoid circuit, suggesting a short or other electrical issue.

P0014: Intake Camshaft Position Timing Over-Advanced (Bank 1) relates to timing correlation errors and may indicate mechanical or electrical VCT issues.

P0020-P0024 Series (Bank 2 Intake)

These codes mirror P0010-P0014 but apply to cylinder bank 2 on V engines.

Interpretation is similar to bank 1 codes but points to the opposite cylinder bank. V engines with dual VCT systems may have issues on one or both banks independently.

Systematically diagnose each bank. Don’t assume both banks are affected. Test each side independently to determine repair scope.

P0050-P0054 and Similar Series (Exhaust Camshafts)

Engines with exhaust camshaft VCT have additional code ranges for exhaust-side issues.

Code interpretation parallels intake codes but applies to exhaust timing. The same diagnostic principles apply.

Exhaust VCT problems may have different symptoms than intake VCT issues due to different timing effects on engine operation.

Manufacturer-Specific Codes

Beyond generic codes, manufacturers often define additional codes for their specific VCT systems.

Check manufacturer-specific code databases for complete information. Generic code readers may not display all relevant codes.

Service information for your specific vehicle provides the most accurate code interpretation and diagnostic procedures.

Making the Repair Decision: Professional Analysis

Deciding whether to tackle VCT repair yourself or seek professional help deserves careful consideration.

DIY Suitability Assessment

Evaluate your capability honestly before beginning VCT repairs.

Mechanical experience level matters significantly. If you’ve successfully completed similar repairs, VCT solenoid replacement should be within reach. If this would be your first significant engine work, proceed with caution.

Available tools and workspace affect repair practicality. Most solenoid replacements require basic tools, but some applications may need specialty items.

Time availability determines whether DIY is practical. If you need the vehicle quickly and problems arise during repair, professional help may be a better choice.

Risk tolerance should factor into decisions. VCT systems are relatively forgiving of amateur repair attempts, but incorrect diagnosis or installation can create additional problems.

When Professional Help Is Advisable

Certain situations strongly favor professional repair.

Complex diagnosis where multiple possible causes exist benefits from professional expertise and diagnostic equipment.

Repairs requiring timing component access involve complexity and precision that most DIYers should leave to professionals.

Limited time or workspace makes professional repair more practical regardless of technical capability.

Warranty or documentation requirements may specify professional service for certain repairs.

Finding Qualified Help

If you decide on professional repair, choosing the right shop matters.

Look for diesel or specific-brand expertise relevant to your vehicle. Technicians experienced with your engine family are more likely to diagnose and repair correctly.

Ask about diagnostic process before authorizing extensive repairs. Shops that can explain their reasoning inspire confidence.

Request OEM or equivalent quality parts. Cheaper parts may not perform as well or last as long, particularly for VCT solenoids.

Verify warranty terms for the repair. Reputable shops stand behind their work with meaningful warranties.

Conclusion: Keeping Your VCT System Healthy

Conclusion: Keeping Your VCT System Healthy

A stuck VCT solenoid, while concerning, is a manageable problem that most vehicle owners can address effectively. Understanding how variable camshaft timing works, recognizing symptoms of VCT problems, and knowing how to diagnose and repair solenoid issues empowers you to maintain this important system properly.

The key points to remember include recognizing that VCT solenoid problems typically manifest through check engine lights, rough idle, performance changes, and unusual engine noises. These symptoms in combination point toward VCT issues that warrant diagnosis.

Proper diagnosis before repair ensures you address the actual problem. Check codes, inspect oil condition, test the solenoid electrically and mechanically, and verify oil pressure before concluding the solenoid needs replacement.

Replacement is straightforward on most vehicles, requiring basic tools and moderate mechanical skill. Following proper procedures ensures successful repair without creating new problems.

Prevention through proper oil maintenance is the most effective strategy. Using correct oil specifications, changing oil at appropriate intervals, using quality filters, and maintaining proper oil level all protect VCT systems from premature failure.

Modern engines depend on variable valve timing for the performance, efficiency, and emissions characteristics we expect. Keeping this system healthy through proper maintenance and prompt attention to problems ensures your engine delivers the performance it was designed to provide for many years of service.
